OGM Ø 70-G-1200
TECHNICAL SPECIFICATIONS
OGM – Ø 70-G-1200
HDPE-LDPE-LLDPE FILM MACHINE
OZGULMAK PLASIC MACHINERY CO.LTD.
TEL : 0090 212 567 55
24
TEL : 0090 212 567 98
64
FAX : 0090 212 674 44
66
OGM G-1200 Ø 70 BACK TO BACK DOUBLE WINDER
HDPE –
LDPE-LLDPE
TECHNICAL DETAILS
- MODEL
: OGM Ø 70 G-1200
- MATERIAL TO BE USED : HDPE – LDPE-LLDPE
- MAX. FILM WIDTH : 1150 mm.
- THICKNESS OF FILM : 0,008 – 0,150 mm
- MAX.EXTRUSION OUTPUT : 130 kg/h
EXTRUDER UNIT
- SCREW DIA :Ø
70 mm.
- SCREW L/D :
30 : 1
- SCREW MATERIAL : 8550 41 CrA1Mo7 BONIFIED
- SCREW TYPE :
BARRIER MODELL
BARREL
- BARREL MATERIAL : 8550 41 CrA1Mo7 BONIFIED
- BARREL DIAMETER : Ø 140 mm
- HEATING SYSTEM : 3 zones
- COOLING BLOWER : 3
PCS.-0,37Kw
- HEATER CAPACITY : 15,2 Kw
GEAR BOX
- REDUCER TYPE : HIGH
QUALITY (CE NORMS)
- OILING SYSTEM : BY
THE PUMP OILING SYSTEM
- COOLING SYSTEM : NATURAL
COOLING BY THE WATER
- BEARING MODELL :
29424 SERIAL BEARING
- REDUCTION :
1/8.2 3 STEPS HELIX GEAR
MAIN MOTOR
·
MAIN MOTOR
: 45 KW 1500 cycle/min
AC
·
MAIN
MOTOR CONTROLLER : 45
KW LG BRAND
FILTER
·
FILTER TYPE
: DOUBLE STATION,MANUEL TYPE
·
HEATING CONTROLL : 2 ZONES AUTOMATIC HEATING CONTROLL
·
ELECTROTHERMAL
CAPACITY : 3 Kw

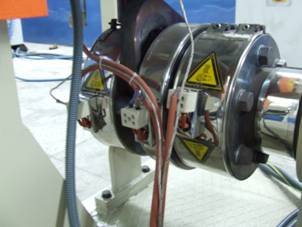

DIE UNIT
·
DIE TYPE : ROTATING DIE HEAD(INVERTER CONTROLLER)
- TEMPERATURE CONTROLL : 2 Zones
- DIES (m/m)
: HDPE Ø 130 – LDPE Ø220 mm
- ELECTROTHERMAL POWER : 7.5 Kw

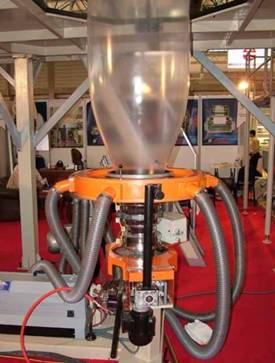

COOLING RING
·
COOLING TYPE
: AIR COOLING
·
AIR ENTRANCE
: 6 ENTRANCES
·
CENTRAL
COOLING FAN
: 3 Kw 1500 CYCLE/min.AC LG driver
TOWER GROUP
·
TOWER TYPE : FIXED TYPE
·
MACHINE HEIGHT
: 5500 mm.
·
ROLL WIDTH
: 1200 mm
·
FILM WIDTH : 1150
mm
·
ROLL DIAMETER : Ø 165 mm
·
TAKE-UP MOTOR : 1,5 Kw. 1500 d/d AC (DRIVER)
·
TAKE –UP SPEED
: 120 m/max.
ROLLER’S GROUP : 1 RUBBER-1
CHROME COVER
PULLER GUIDE
·
ROLL WIDTH : 1200
mm
·
FILM WIDTH : 1150
mm
·
ROLL DIAMETER : Ø
165 mm
·
PULLER MOTOR
: 1.5 Kw 1500 cycle/min AC driver
·
PULLING SPEED
: 120 m/max.
WINDING UNIT
·
TYPE
:BACK TO BACK DOUBLE WINDER , MANUEL
·
ROLL WIDTH
: 1200 mm
·
EFFECTIVE
WIDTH : 1150
mm.
·
DIA OF
FILM WIND-UP : Ø 1000 mm.
·
WINDING MOTOR : 1,5
Kw 1500 d/d (DRIVER)
·
BANANA ROLLER : 2
PCS.
·
TAKE-UP
SPEED (m/m) : 120 max/min
·
KNIFE SYSTEM : 1
set from the middle AND EDGE SCRAP
COLLECTOR
ELECTRICITY BOARD
·
TYPE :
INDEPENDENCE TYPE SWITCH
BOARD
·
TEMP.CONTROL : 7 POINTS
·
TOTAL POWER : 78.2 Kw.
·
ELECTRICITY
COMPONENTS :SIEMENS,TELEMACANIQUE
AND EQULANCE BRANDS
ADDITIONAL UNITS(Inc.the price)
AIR SHAFT 4 PCS.
EMBOSSING 1 SET
BANANA ROLLER 3 PCS.
SIDE OPEN &
SLITTER 1 SET
EDGE SCRAP
COLLECTOR BY THE FAN
BLOWER 1 SET
RAW MATERIAL HOPPER 1 PC
PRICE :
OPTIONALS:
CORONA UNIT
RESERVE PARTS
TERMOSTATE 2 PCS
AMPERMETER 2 PCS
TERMACUPUL 2PCS
DELIVERY TIME : READY IN THE STOCK
GUARANTY
( 1 ) ONE YEAR
